Sliding Table Saw
VE - 45C
Parameter
| Model | VE - 45C |
| Sliding table size | 3200x390mm |
| Max cutting thickness | 80mm |
| Main saw blade diameter | 300mm |
| Inner hole diameter of main saw blade | 30mm |
| Scoring saw blade diameter | 120mm |
| Inner hole diameter of scoring saw blade | 20mm |
| Speed of main saw spindle | 4000/5000r/min |
| Speed of scoring saw spindle | 9000r/min |
| Angle of inclination | 45° |
| Main saw motor power | 5.5kw |
| Scoring saw motor power | 0.75kw |
| Angle tilt motor | 90w |
| Power | AC380V/50Hz |

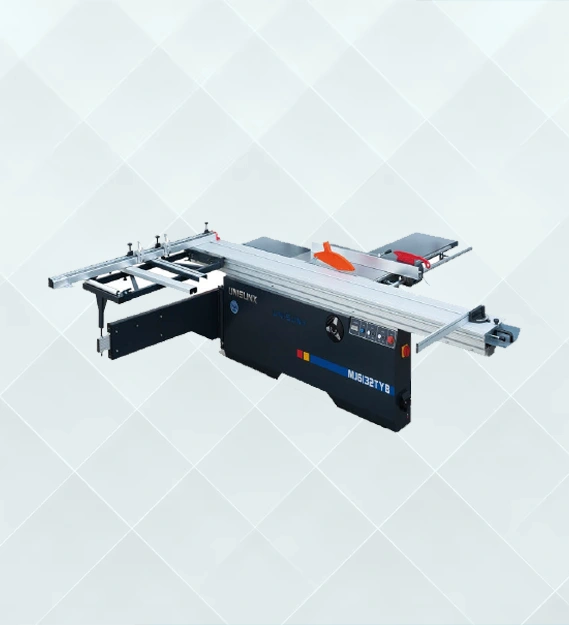

MJ6132TYB
Parameter
| Model | MJ6132TYB |
| Sliding Table Dimension | 3200*395mm |
| Main Saw Diameter | 300mm |
| Main Saw Blade Diameter Maximum | 350mm |
| Main Saw Bore Diameter | 30mm |
| Max. Cutting Height With Bade at 90 | 80/100mm ($300/350) |
| Max. Cutting Height With Bade at 45 | 50/70mm ($300/350) |
| Main Motor Power | 5.5KW |
| Main Blade Speed | 4000/6000RPM |
| Scorning Saw Blade Diameter | 120mm |
| Scorning Saw Bore Diameter | 20mm |
| Scorning Saw Motor Power | 1.1KW |
| Scorning Blade Speed | 8000RPM |
| Max. Cutting Width | 1250mm |
| Max. Cutting Length | 3100mm |
| Blade Tilting Adjustment | 0-45° |
| Dimension | 3250*3450*900mm |
| G. W. | 900KG |

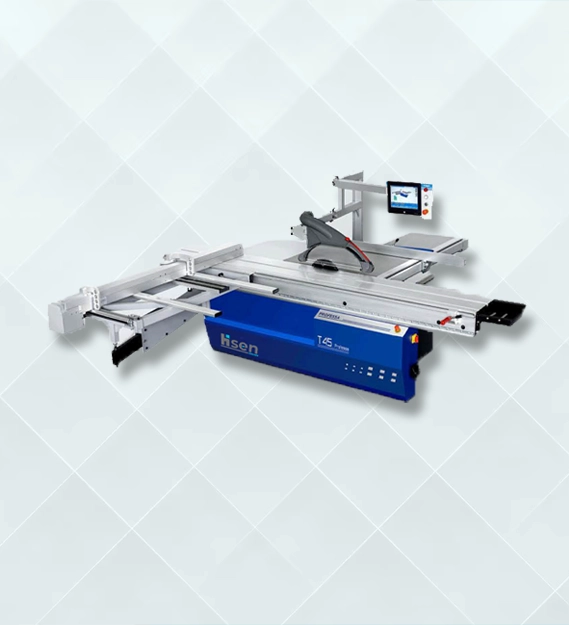

SAGA Professa T45
Professa/ENG T45 series is a saw with future technology, It is a world class advanced sliding table saw, it is a mile stone for Industry saw, with on time program for cutting, optional optimized cutting software, fully automatic servo controlled rip cutting fence, professa T45 even got cross ruler servo control called Dual linear accuracy technology, large 3200(optional 3800mm) sliding table, max 600mm diameter blade can be install, up to 210mm max cutting thickness, all reflection of a heavy duty tough working machine.
Download Catalog

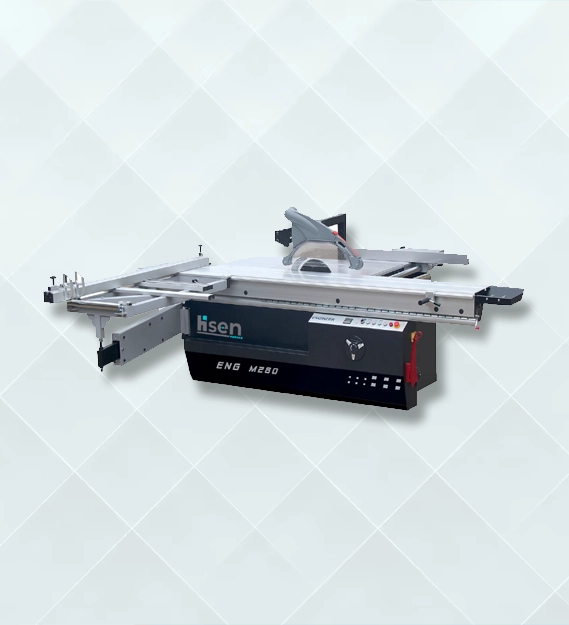

ENG M280
Is a large industrial heavy duty sliding table saw with a style of its own, the high performance makes it have a seat amonginternational famous saws. 3200mm length table, table width 430mm, with any step lock function, machine fitting with new saw system same as fully automatic model, max cutting thickness up to 210mm(Scoring blade hidden off), Manual tilting of blade, with digital display, electrical blade raise and down. Machine equipped with European dust collection cover.
Download Catalog
