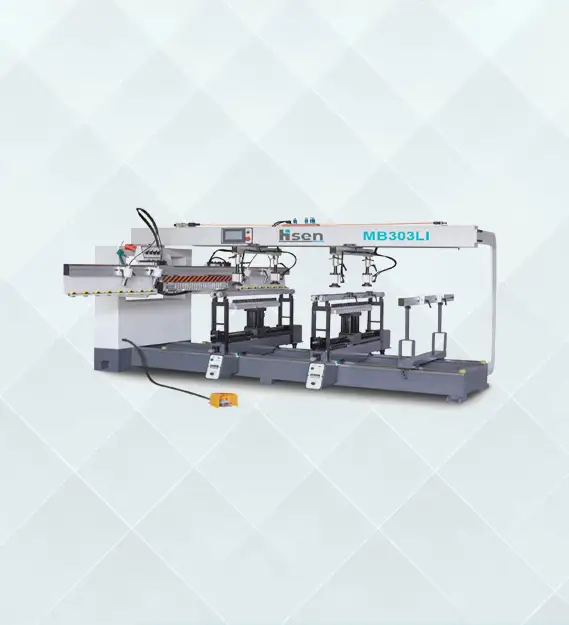

Multi Boring Machine

Model	MB-303L1 (Single motor)
Max. center distance between holes	L * W=1850mm * 672mm
Min. center distance between holes	L * W=130mm * 32mm
Total quantity of spindles	21 * 3 = 63
Total quantity of drill lines	2+1=3
Max. drilling diameter	35mm(single bit) 13mm(multi bits)
Max. drilling depth	60mm
Dia. of drill bit shaft	10mm
Total power	1.5 * 3 = 4.5kw
Net weight	1300kg
Overall dimensions	3000 * 2500 * 1650mm
